商品

分光式色差儀

分光式色差儀

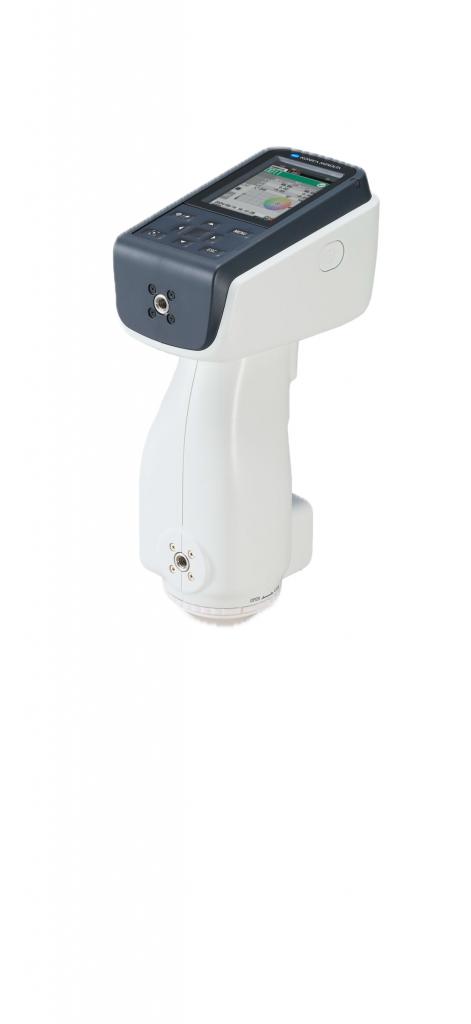

商品型號: CM-17d/CM-16d

直立便攜式分光測色計,非常適合小型樣品測量和曲面測量。 CM-17d配有電子取景器,便於定位。 CM-16d結構緊湊,性價比高。



產品敍述:

CM-17d和CM-16d直立便攜式分光測色計是CM-700d和CM-600d的繼任型號。

CM-17d具有電子取景器的新功能,便於測量定位,而CM-16d的特點則是追求簡易的高性價比。它們在小物品測量和曲面測量方面表現出色,並可通過無線連接的方式,遠程管理數據。因此,兩款儀器可適用於多類應用場景。

商品規格:

Spectrophotometer CM-17d / CM-16d

Model CM-17d CM-16d
Illumination/viewing system di:8°,de:8° (diffuse illumination: 8° viewing), SCI (specular component included) / SCE (specular component excluded) switchable
Applicable standards for



illumination/viewing system

Conforms to ISO7724/1, CIE No.15 (2004), ASTM E 1164 (SCI), DIN5033 Teil7, JIS Z 8722 Condition c standard
Integrating sphere Ø40 mm
Detector Dual 32-element silicon photodiode arrays
Spectral separation device Planar diffraction grating
Wavelength range 400 nm to 700 nm
Measurement



wavelength pitch

10 nm
Half bandwidth Approx. 10 nm
Reflectance range 0 to 175%; Resolution: 0.01%
Light source Pulsed xenon lamp (with UV cut filter)
Measurement time Approx. 0.7 s (Measurement mode: SCI or SCE, from pressing trigger button to measurement completion)
Minimum measurement



interval

Approx. 1.5 s (Measurement mode: SCI or SCE)
Battery performance Approx. 2,000 measurements (approx. 1,000 measurements when using Optional WLAN/Bluetooth module) when measurements are taken at 10-second intervals at 23°C with the dedicated lithium battery, without using electric view finder
Measurement area/



Illumination area

MAV: Ø8 mm/Ø11 mm



SAV: Ø3 mm/Ø6 mm

*Can be changed by replacing the target mask and switching the lens position

MAV: Ø8 mm/Ø11 mm
Repeatability Standard deviation within ΔE*ab 0.02



(When a white calibration plate is measured 30 times at 5-second intervals

after white calibration under Konica Minolta standard conditions)

Standard deviation within ΔE*ab 0.04



(When a white calibration plate is measured 30 times at 5-second intervals

after white calibration under Konica Minolta standard conditions)

Inter-instrument agreement Within ΔE*ab 0.12



(Based on average for 12 BCRA Series II color tiles; MAV SCI; compared to values

measured with a master body under Konica Minolta standard conditions)

Within ΔE*ab 0.2



(Based on average for 12 BCRA Series II color tiles; MAV SCI; compared to values

measured with a master body under Konica Minolta standard conditions)

Display 2.7-inch TFT color LCD with reversible portrait viewing mode
Internal Performance Check WAA (Wavelength Analysis & Adjustment) Technology*1
Interface USB 2.0; WLAN (IEEE 802.11 b/g/n)/Bluetooth(Ver.4.1, SPP-compatible.)



Optional WLAN/Bluetooth module required*2 *3

Camera viewfinder function Using internal camera; Images can be shown on display

Observer 2° Standard Observer, 10° Standard Observer
Illuminant A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, User-defined illuminant*4 (Max. 3 types)



(Simultaneous evaluation with two light sources possible)

Display items Colorimetric values/graph, color difference values/graph, spectral graph, pass/fail judgment, pseudocolor
Color spaces L*a*b*, L*C*h, Hunter Lab, Yxy, XYZ, and color difference in these spaces; Munsell (C)
Indices MI, WI (ASTM E313-73/ASTM E313-98); YI (ASTM E313-73, ASTM D1925); ISO brightness (ISO2470); WI/Tint (CIE); Tristimulus Strength; Opacity; Grey scale (ISO 105-A05); gloss value; User index*5, Blackness (My) (ISO18314-3/DIN55979); Jetness (Mc) (ISO18314-3); Undertone (dM) (ISO18314-3)
Color difference equations ΔE*ab (CIE1976); ΔE*94 (CIE1994); ΔE00 (CIEDE2000); CMC (l:c); Hunter ΔE; DIN99o; FMC-2; ΔE*94 (Special)*6
Data memory 1,000 target data + 5,000 sample data
Power AC power supply: USB Type-C AC adapter (Power Delivery compatible, 15 W or more)



Battery: Lithium-ion battery (removable)

USB charging: USB bus power (with lithium-ion battery installed)

Charging time Approx. 3.5 h (rapid charge) / Approx. 6 h(standard)
Size Approx. 79(W)×230(H)×128(D) mm
Weight Approx.700 g (Lithium-ion battery included) Approx.660 g (Lithium-ion battery included)
Operating temperature/



humidity range

Temperature: 5 to 40°C; Relative humidity: 80% or less (at 35°C) with no condensation
Storage temperature/



humidity range

Temperature: 0 to 45°C; Relative humidity: 80% or less (at 35°C) with no condensation

*1 The WAA function is available free of charge for the first year after purchase and can be continued in the second year and beyond by having the instrument serviced and calibrated.

*2 Requires optional accessory WLAN/Bluetooth module (CM-A300).

*3 WLAN security supports WPA2-PSK (WPA2-Personal) and WPA-PSK (WPA-Personal) for the ad hoc method, and WPA3-PSK (WPA3-Personal), WPA2-PSK (WPA2-Personal) and WPA-PSK (WPA-Personal) for the infrastructure method.

*4 Optional Color Data Software SpectraMagic NX2 Pro (Ver.1.3 or later) is required for setting user-defined illuminants and user indexes.

*5 Configuration Tool CM-CT1 (Ver. 1.5 or later) and a valid Color Data Software SpectraMagic NX2 license are required for setting user indices.

*6 When comparing two colors, use ΔE*94(Special) if one is not specified as standard.

**Specifications subject to change without notice.
